The revolutionary energy-efficient Solatube Smart LED lighting system unites advanced LED technology with proven Solatube daylighting design. Starting at the roof level, patented dome technology captures daylight and transmits it indoors through the world's most reflective tubing to spaces once thought impossible to reach with natural lighting. At the same time, proprietary SunSense Technology monitors light levels and automatically triggers the system's LEDs when light levels get too low. This seamless transition from free daylight to energy-efficient LED light reduces energy use by up to 94%, making the Smart LED System an unbeatable sustainable lighting option and the most energy-efficient commercial lighting solution.



Technology

Capture

Raybender® 3000

Technology

A patented daylight-capturing dome lens that:

  • Redirects low-angle sunlight for maximum light capture
  • Rejects overpowering summer midday sunlight
  • Provides consistent daylighting throughout the day

LightTracker™

Reflektör

An innovative in-dome reflector that:

  • Redirects low-angle winter sun light for maximum light capture
  • Increases light input for greater light output
  • Delivers unsurpassed year-round performance

Transfer

Spectralight®

Infinity Tubing

Tubing made of the world's most reflective material that:

  • Delivers 99.7% * specular reflectivity for maximum sunlight transfer
  • Provides the purest color rendition possible so colors are truer, brighter
  • Allows for run lengths over 30 feet to deliver sunlight to lower floors

Control

& Deliver

SunSense

Technology

A patented control center that:

  • Continually assesses light levels and determines when supplemental light is needed
  • Automatically triggers LEDs to provide optimal light output
  • Seamlessly transitions from waning daylight to radiant LED light

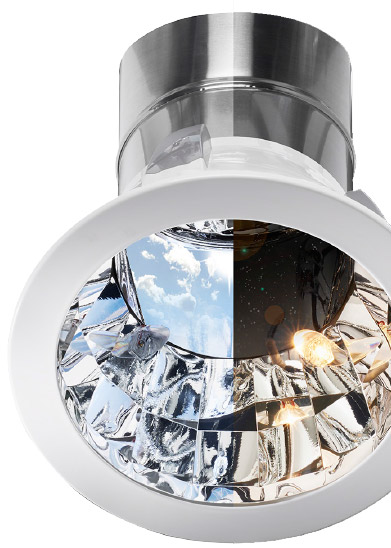

SunSense Technology

High-performance Amplifier

Enclosed in a specially designed flared housing, the high- performance Amplifier features a patented design that utilizes16 highly reflective facets. These facets redirect light downward toward the Decorative Fixture at the most effective angle, maximizing light output for powerful performance.

Daylight Sensor

A Daylight Sensor continually monitors light levels within the tube and activates the LEDs when light levels reach a minimum threshold. It also deactivates the LEDs when sufficient daylight is present.

Light Optimization Lens

A patented Light Optimization Lens allows daylight to pass through and directs the light produced by the LEDs toward the Decorative Fixture.

Light Emitting Diodes (LEDs)

Four 3000K LEDs with an average 35 lumens / watt output provide ultra-energy efficient lighting designed to last up to 20 years. In addition, they complement existing lighting and deliver 80 CRI for a highly accurate display of colors.


PRODUCT OPTIONS

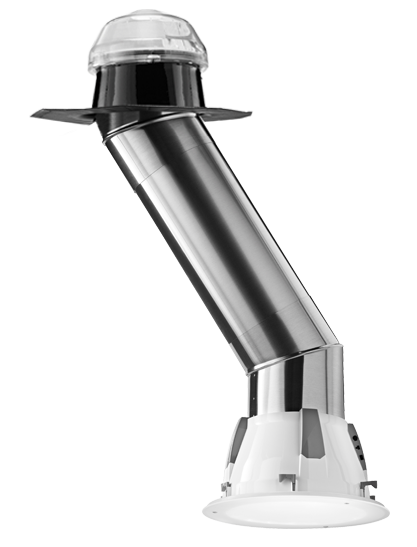

Solatube Smart LED

Primary Unit

The Smart LED System is designed to work best in small to medium-sized spaces like corridors, offices and meeting rooms. Use them in multiples for a dramatic effect in larger areas.

  • Tube Size ≈ 10 in. (250 mm)
  • Potential Tube Length ≈ 20 ft. (6 m)

Applications

  • Small offices
  • Corridors
  • Warehouses
  • Resting areas

ACCESORRIES

Daylight Dimmer

At times, it may be necessary to reduce the amount of bright daylight in a building—during a presentation, for instance. The optional Daylight Dimmer uses a patented butterfly baffle and a convenient wall-mounted switch to allow for simple and easy adjustments to room daylight illumination levels.

Occupancy Sensor

If you thought the Solatube Smart LED System couldn't get any smarter, think again. The optional Occupancy Sensor maximizes energy efficiency by preventing the LEDs from triggering unless an under lit area is occupied. If movement is present when light levels are low, the Occupancy Sensor will allow the LEDs to activate. If not, they remain dormant.  Once on, the system continues to assess light levels and will turn off the LEDs automatically when enough daylight is present. Building owners will save on electricity and never have to worry about the lights getting left on. It's a smart solution for spaces that get occasional traffic—like restrooms, corridors, and offices—that can further reduce energy costs.

Spectralight® Infinity 0-90 Degree Extension Tube

Provides superior performance that flexible tubes can't match. An innovative design with three built-in 30 degree angle adapters gives you the flexibility to install around obstacles. Available in 23 in. (580 mm) length.


GLASS DIFFUSER OPTIONS

JustFrost

Simply stunning, JustFrost showcases sunlight in a clean, contemporary design.

QuadraFrost

QuadraFrost delivers stunning daylight with symmetry and style.

TierDrop

The low-profile TierDrop features a beautiful, cascading design for a classic look.

AuroraGlo

Command attention with the smooth, cascading lines and subtle beauty of AuroraGlo. Available in ​white and bronze.

OptiView®

The unique, dazzling lens of OptiView delivers artful views of the sky in a low-profile design.

VividShade

The chic VividShade accents daylight with contemporary fabric.

Classic Vusion™ Diffuser

Featuring a classically simple design, the Vusion Diffuser delivers radiant light that complements any room.
