Nanolux Louvre is a heat insulated facade and roof system that offers natural lighting and ventilation. While providing natural lighting; thanks to its openable mechanism to 90degrees, it provides natural ventilation. As its possible to install on the opposite walls to creat air circulation, it can also be mounted on the roof. NanoLux Louvre is produced project based.



Technology

Natural Ventilation

Openable Panel System

Nano-Technology

Nanolux Louvre System is made of policarbonate panels which are openable to 90degrees with a special mechanism. The mechanism is remote controlled. When the panels are closed, the system becomes moisture insulated and air tight with its special wick details. Nanolux Louvre offers an insulated wall application.

Natural Lighting

Nano Technology

NanoLux Louvre system has a special nanotechnological material inside; which provides daylight while blocking the heat effect. Thanks to this aerogel material, between the natural ventilation property, the system also works as a light wall.

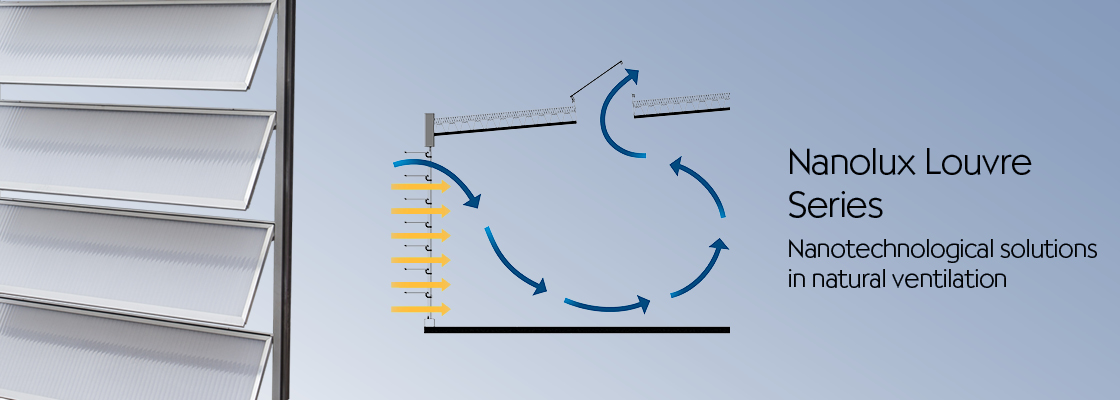

Air Circulation

The openable panels of Nanolux Louvre creates an air circulation in the area. While creating a draught effect when applicated on opposite facades; it creates clear air circulation supported by a skylight. Nanolux Louvre prevents air pollution inside the building and provides thermal comfort.

Performance Values*

Thickness (mm)
Light Transmittance (%)
Direct Sunlight Transmittance (%)
U Value (W/m2k)
R Value (reflection)
10
80
80
1.38
3.2
16
70
70
1.00
4.3
20
62
62
0.78
7.2
25
55
55
0.64
8.0
32
47
47
0.51
11.1
40
39
39
0.42
12.0

* Referenced from performance Values of Lumira AeroGel.


Product Options

Nanolux Louvre

Benefits of Nanolux Louvre are;

  • Nanolux Louvre is a heat insulated light and ventilation wall.
  • It provides natural ventilation with its 90 degrees openable panels. .
  • With the nano-particles inside the system is translucent and distributes light homogeneously.
  • It is moisture and air tight.
  • It is safe and resistant to external impacts.
  • It is produced project based.
  • It is eco-friendly.
